Case file / Warehousing and distribution

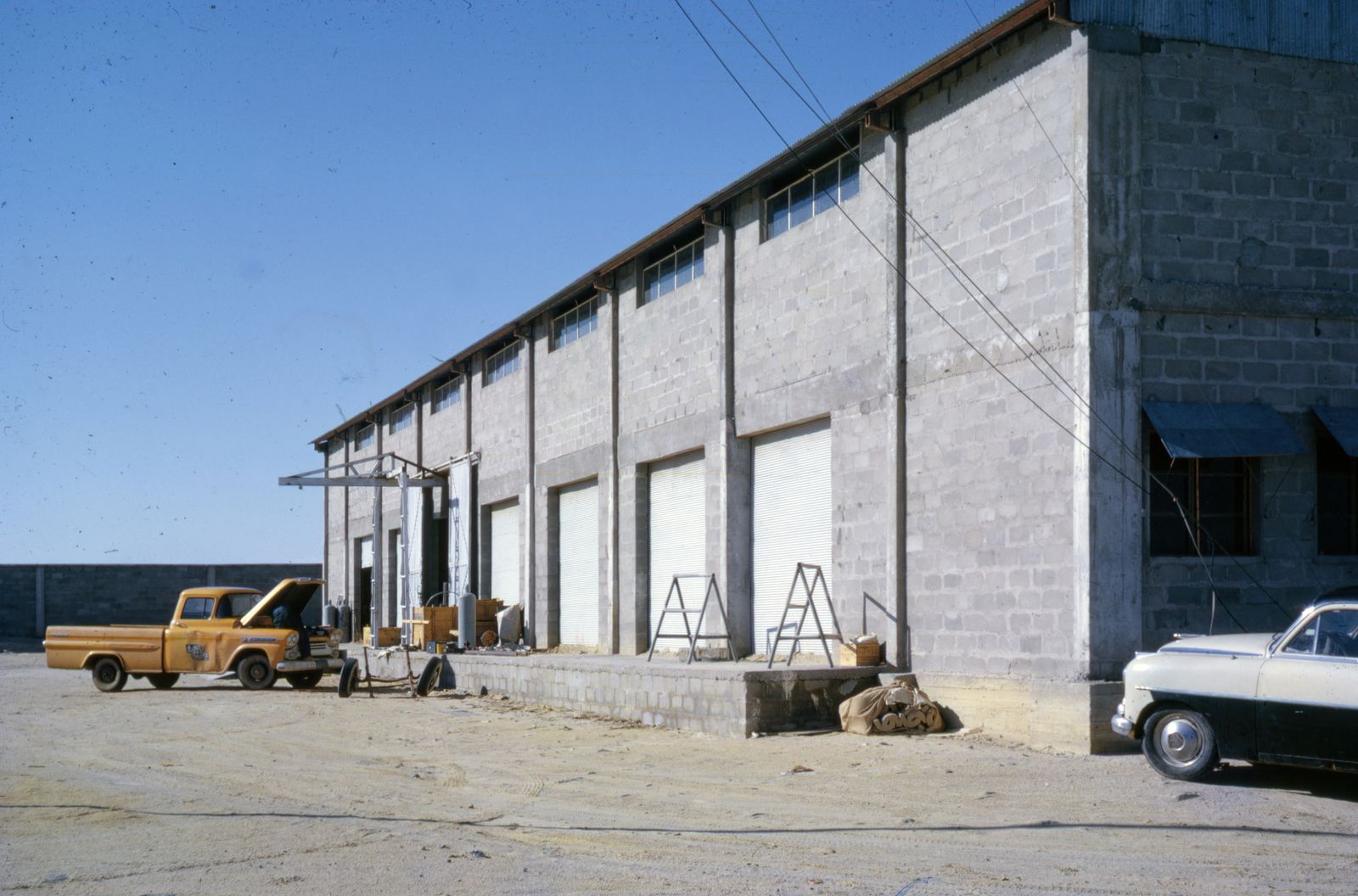

Bakersfield distribution centre
A 960 kW roof array deliberately sized below the available roof area, matched to a load that is about to grow as the yard tractor fleet electrifies.
- Array
- 960 kW DC
- Inverters
- 800 kW AC
- Annual output
- 1,620 MWh
- Permission to operate
- August 2025
Specification
The numbers on the record
| Client | Valley Route Logistics |
|---|---|
| Location | Bakersfield, CA |
| Array rating | 960 kW DC |
| Inverter rating | 800 kW AC (DC to AC ratio 1.20) |
| Modules | 1,745 at 550 W |
| Structure | Ballasted rooftop, east-west rows at 5 degrees |
| Storage | None; 8 yard-tractor charging ports installed |
| Modelled annual production | 1,620,000 kWh |
| Specific yield | 1,688 kWh per kW DC per year |
| Load offset | 52 percent |
| Construction window | 10 weeks |
| Permission to operate | August 2025 |
What made it hard
The constraints
- The roof could physically carry more than 2 MW while the building only drew a few hundred kW during the day.
- An electric yard-tractor pilot was eighteen months out and undefined, but it would change the load shape completely.
- A leased building, which meant landlord consent and a lease term shorter than the array's life.
What we did about it
The approach
- Array sized to daytime load plus the modelled first phase of fleet charging, not to the roof, keeping exported energy to a small share of output.
- East-west rows at 5 degrees to maximise kW on the available structure within the dead-load limit, accepting slightly lower specific yield per kW.
- Switchgear and conduit sized for sixteen charging ports; eight installed, eight stubbed with pull boxes at the yard.
- Structured as a power purchase agreement so the tenant pays per kWh and the lease term question stops being a blocker.
Result
Outcome
- System size
- 960 kW DC / 800 kW AC
- Modelled annual output
- 1,620,000 kWh
- Load offset today
- 52 percent
- Exported share
- Under 9 percent of generation
- Charging capacity
- 8 ports live, 16 stubbed
Bakersfield distribution centre, Bakersfield, CAEveryone else quoted the whole roof. SunHarvest quoted the load we have and the fleet we are actually buying.
